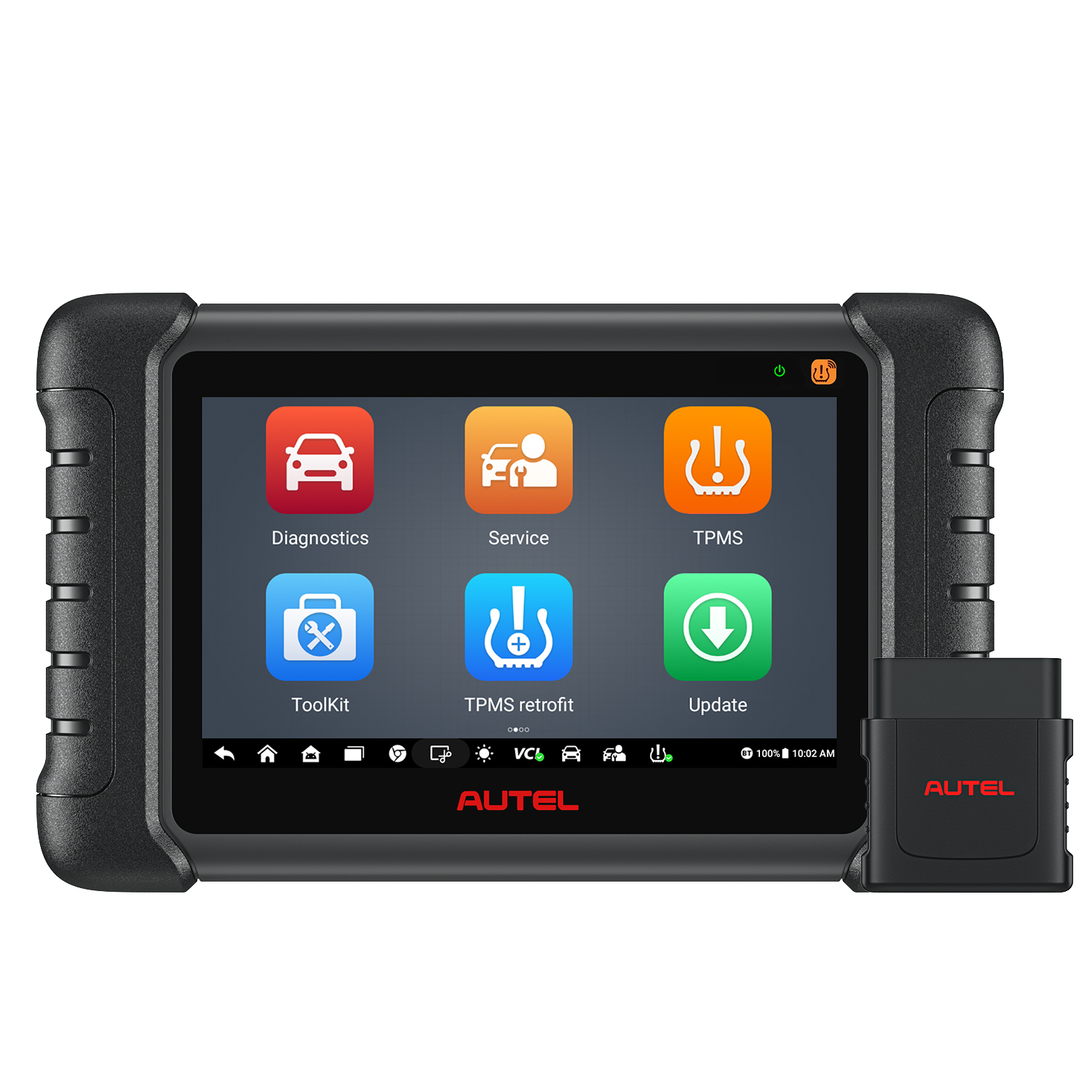

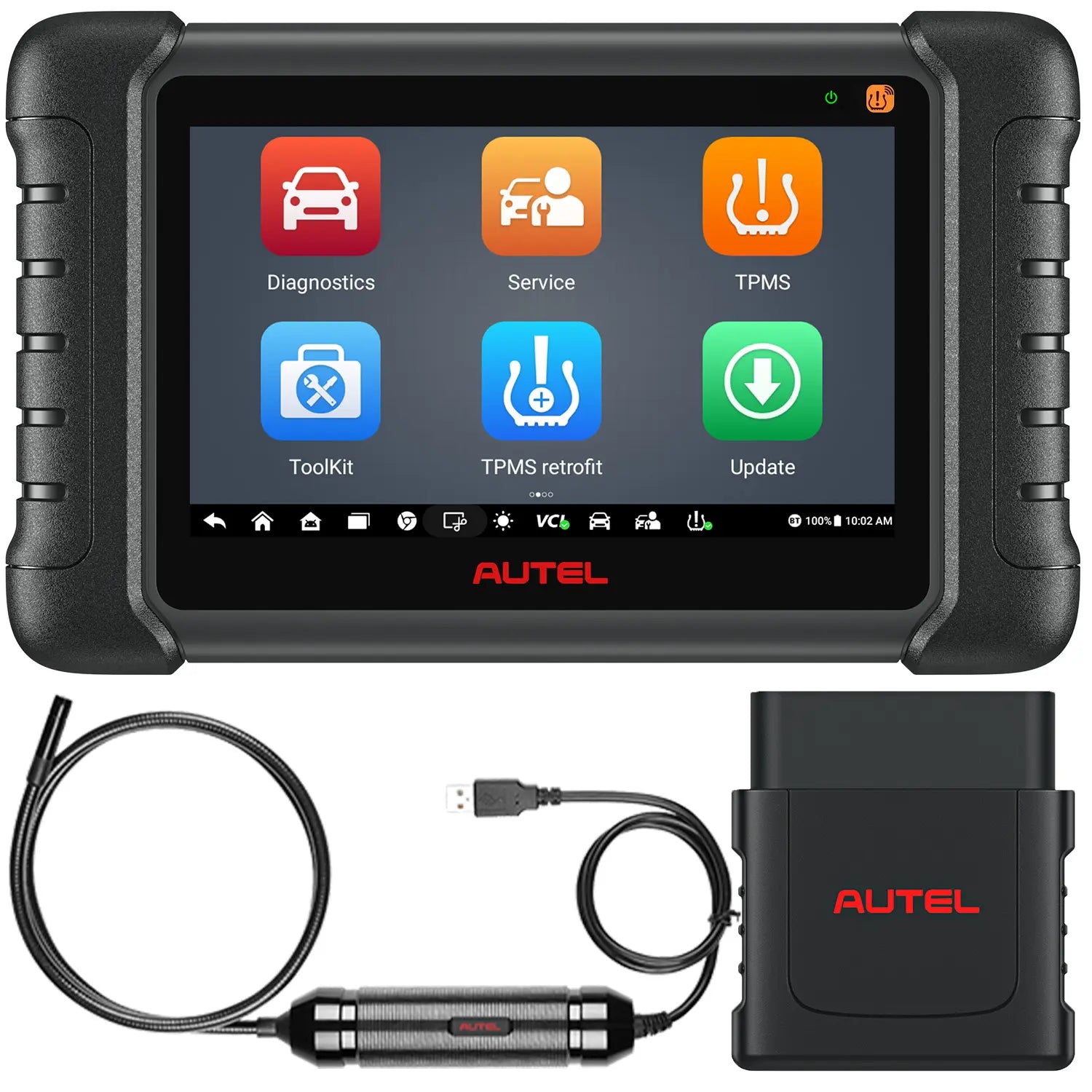

MaxiDAS DS808S-TS

• Advanced ECU Coding: MaxiDAS DS808S-TS has powerful ECU Coding Function, which is same as MS906TS / MS906BT / MS906 and will save half Budget for you. This ECU Coding Function is able to work for BMW, Porsche, Nissan, VW, Hyundai, etc., which allows you to reprogram the adaptive data after a repair or replacement.
• Powerful TPMS Diagnostic System: Compare with MP808BT Pro / MP808S which don’t support TPMS functions, this newly released DS808S-TS scanner performs to activate 99% TPMS sensors, program Autel MX-Sensors, TPMS Relearn, and TPMS sensor retrofitting.
• All System Diagnostic: Autel DS808S-TS Bi-Directional Control Scanner is able to quickly locate the defective location without using the vehicle controls, including Fuel Pump, A/C Clutch, Injector Lights, Headlamp, etc. This function can actually improve the diagnostic efficiency and save your more time!
• 32+ Hot Services Functions: With 32+ Powerful Maintenance Services, Autel DS808S-TS automotive diagnostic scanner features in: Oil Reset, SAS, EPB, SRS, DPF, TPMS, Injector Reset, SAS Calibration, Auto Bleed, etc.
• FCA AutoAuth: This function is compatible with Chrysler, Dodge, Romeo, Fiat, etc, and Auto auth account needs to purchased by yourself, it performs to run diagnostics and services directly without extra adapter.

[keyfeatures] [videos]

Autel DS808S-TS Features:

• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes and models
• Exceptional OE-level system coverage for all electronic systems
• Read and erase codes, View and Graph Live data, Perform bi-directional Active Tests, Perform Adaptations
• AutoVIN technology automatically identifies vehicle make, model, and year

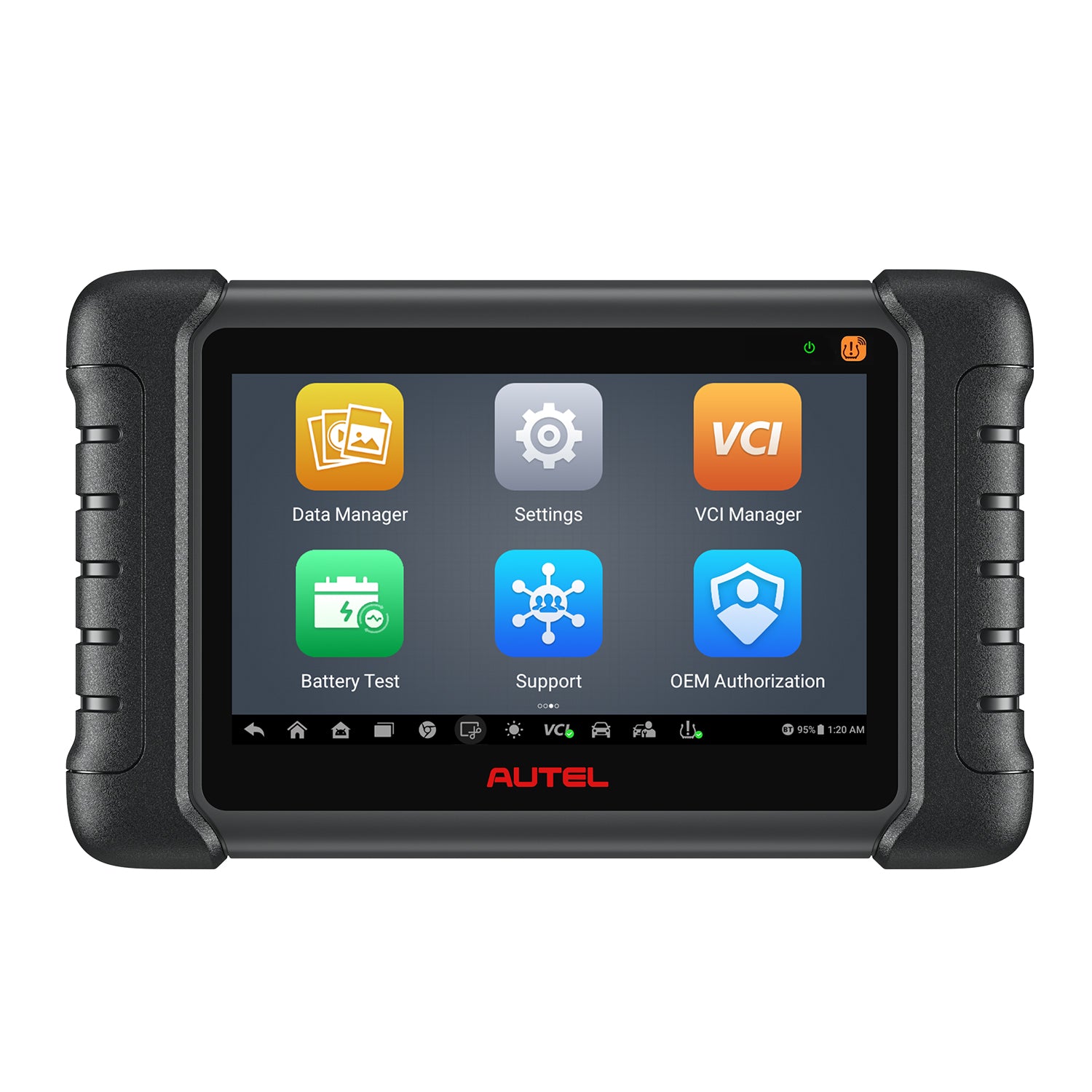

• 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
• Powerful Cortex-A55 processor (1.8 GHz) processor
• 64GB on-board memory for better performance
• Android 11 operating system for fast boot-up and multitasking
• Wi-Fi-enabled automatic software and system updates
• Instant remote control tech support anytime, anywhere
• Advanced TPMS diagnostics with DTC description
• At-a-glance TPMS status screen
• Activate all known TPMS sensors
• Program AUTEL MX-Sensor to replace TPMS 99% of sensors on vehicles today
• Comprehensive OBDII Relearn coverage
• Displays vehicle-specific Relearn instructions
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers

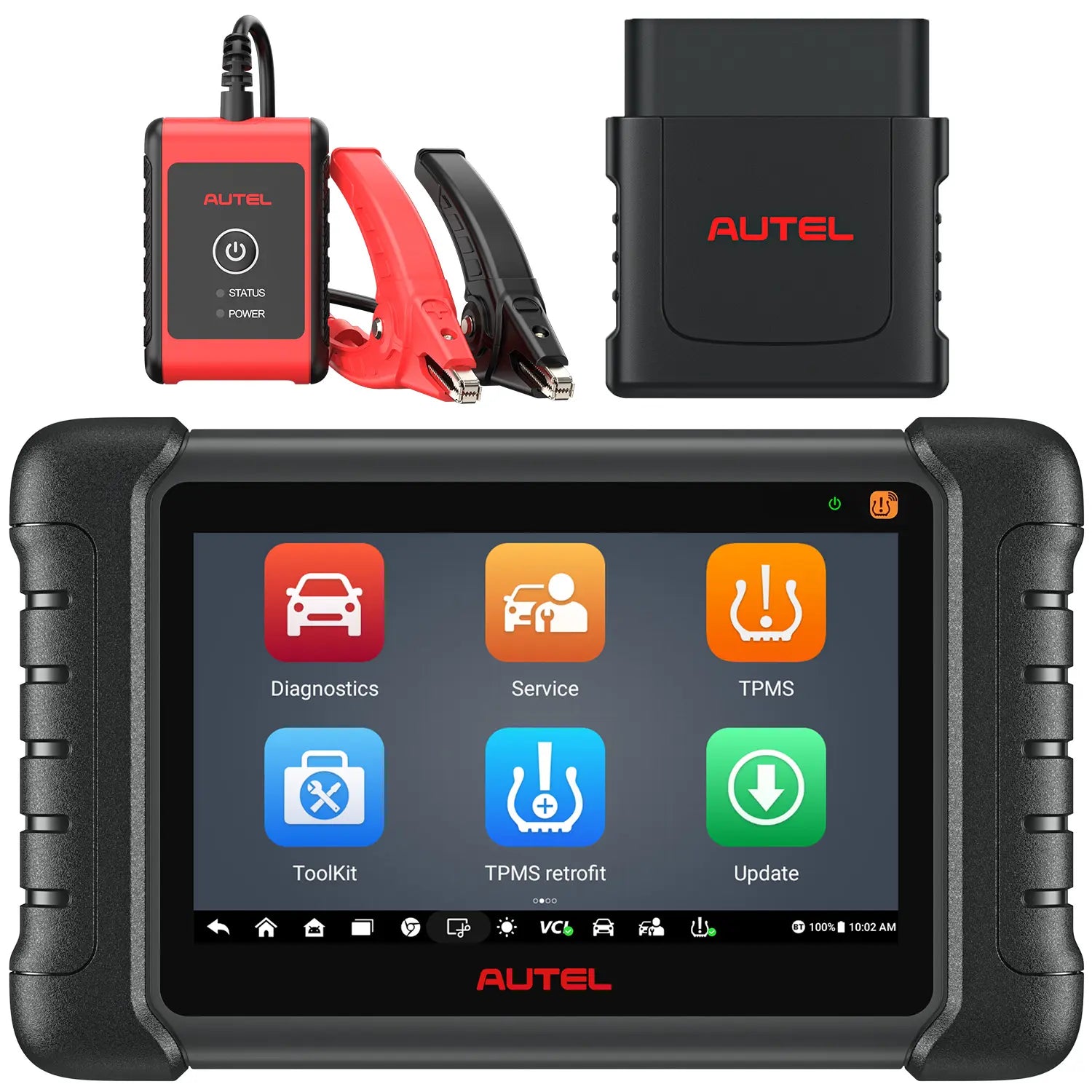

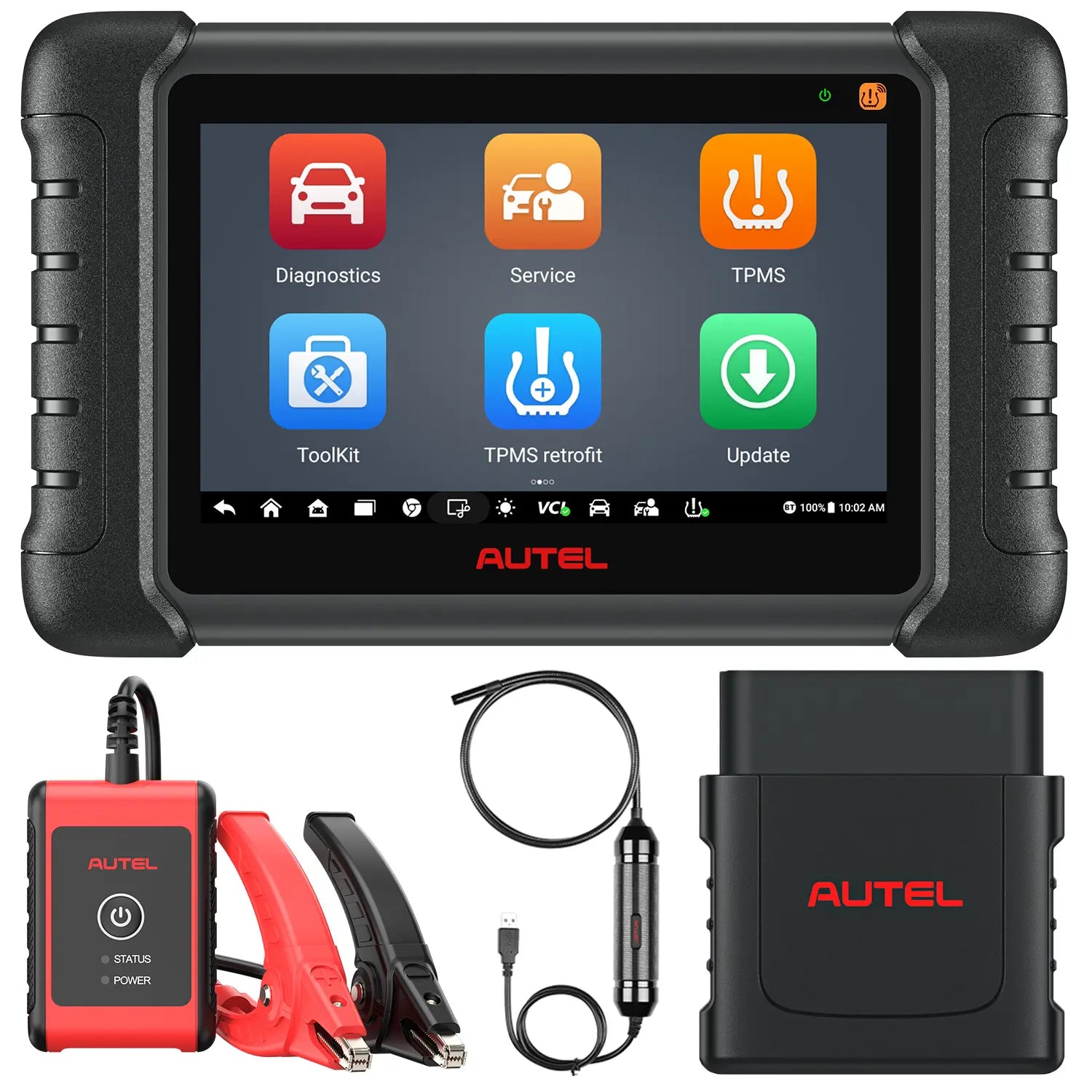

• Compatible with Videoscope and MaxiBAS BT506 to perform Battery Tests and Analysis

Specification

Operating   System	Android 11
Processor	Cortex-A55 quad-core processor (1.8GHz)
Memory	4GB RAM & 64GB On-board Memory
Display	7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity	Wi-Fi(802.11a/b/g/n/ac)
	USB 2.0, Mini USB 2.0
	Wireless BT V2.1+EDR
	HDMI Type A
	SD Card (Support up to 64GB)
Sensors	Light sensor for brightness auto adjust
Audio Input/Output	Input: N/A
	Output: Beep
Power and Battery	3.7 V/5000mAh lithium-polymer battery
	Charges via 5 VDC power supply
Input Voltage	5 V/1.5 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)	270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
Weight	885g (2.31 lb.)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISo11898(Highspeed, Middlespeed, Lowspeed    and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo   Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

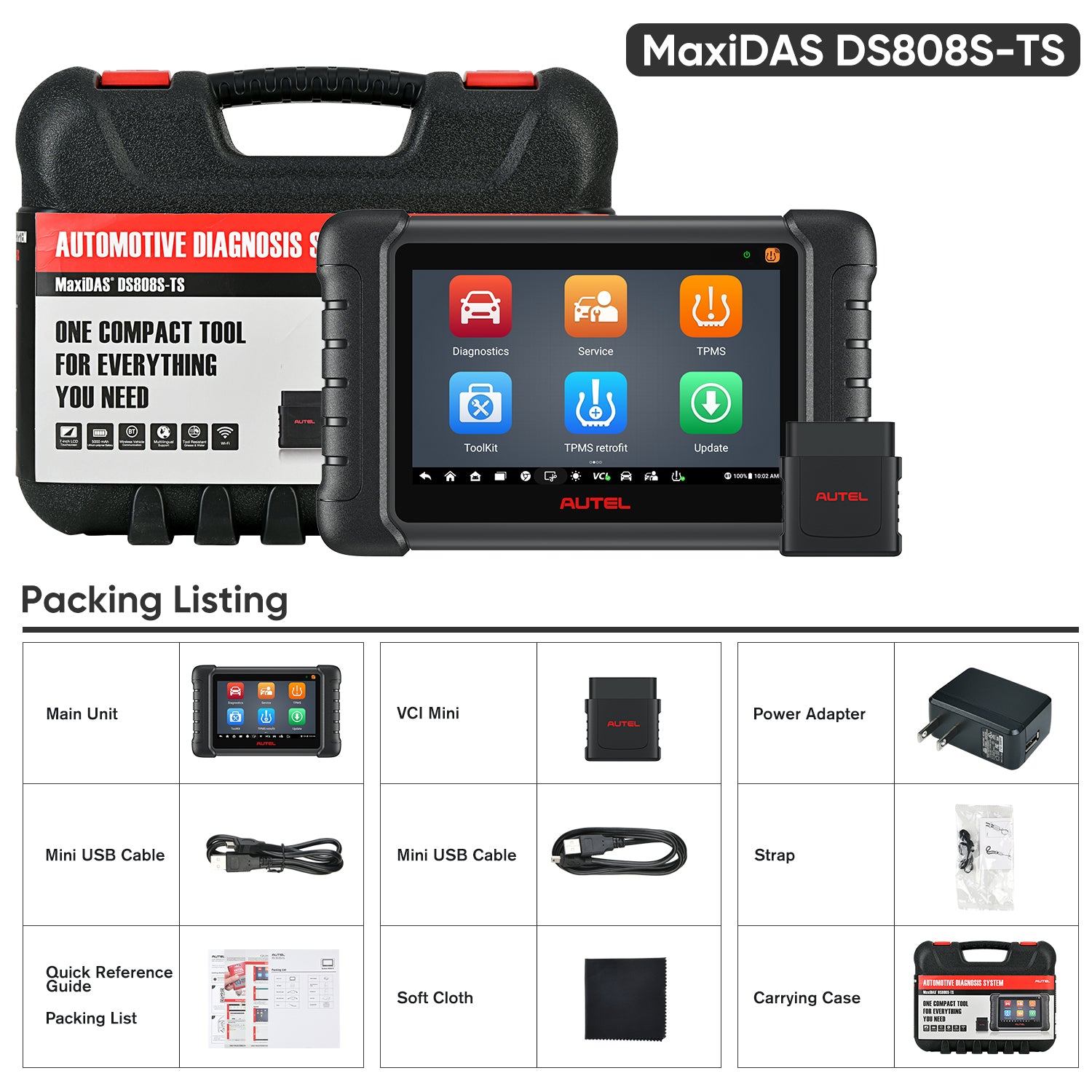

Packing List

• 1x DS808S-TS Main Unit

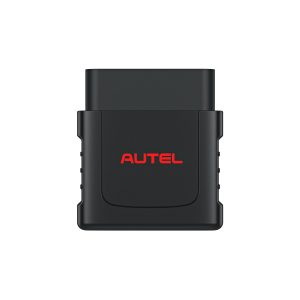

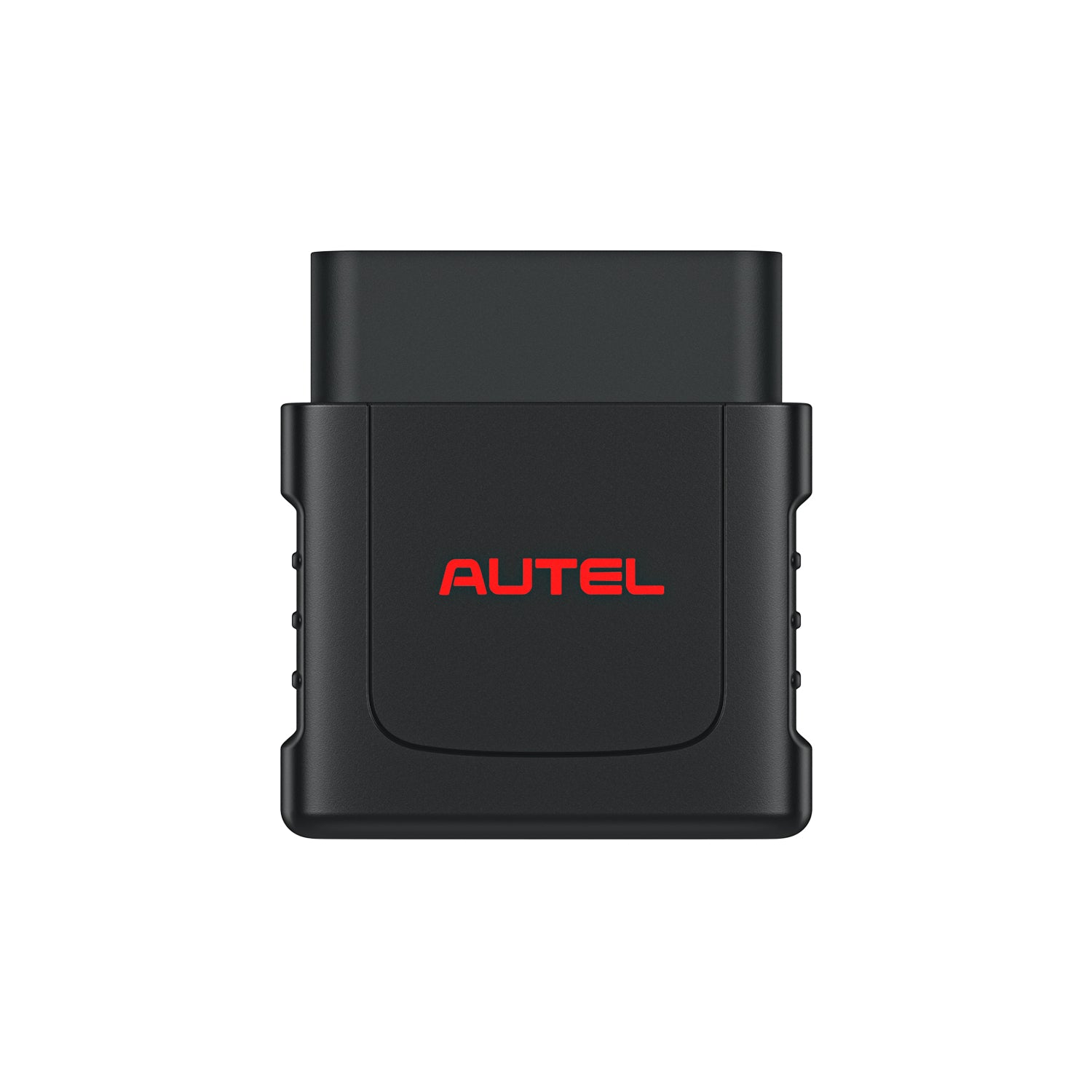

• 1x VCI Mini
• 1x Power Adapter
• 2x Mini USB Cable
• 1x Strap
• 1x Packing List
• 1x Soft Cloth

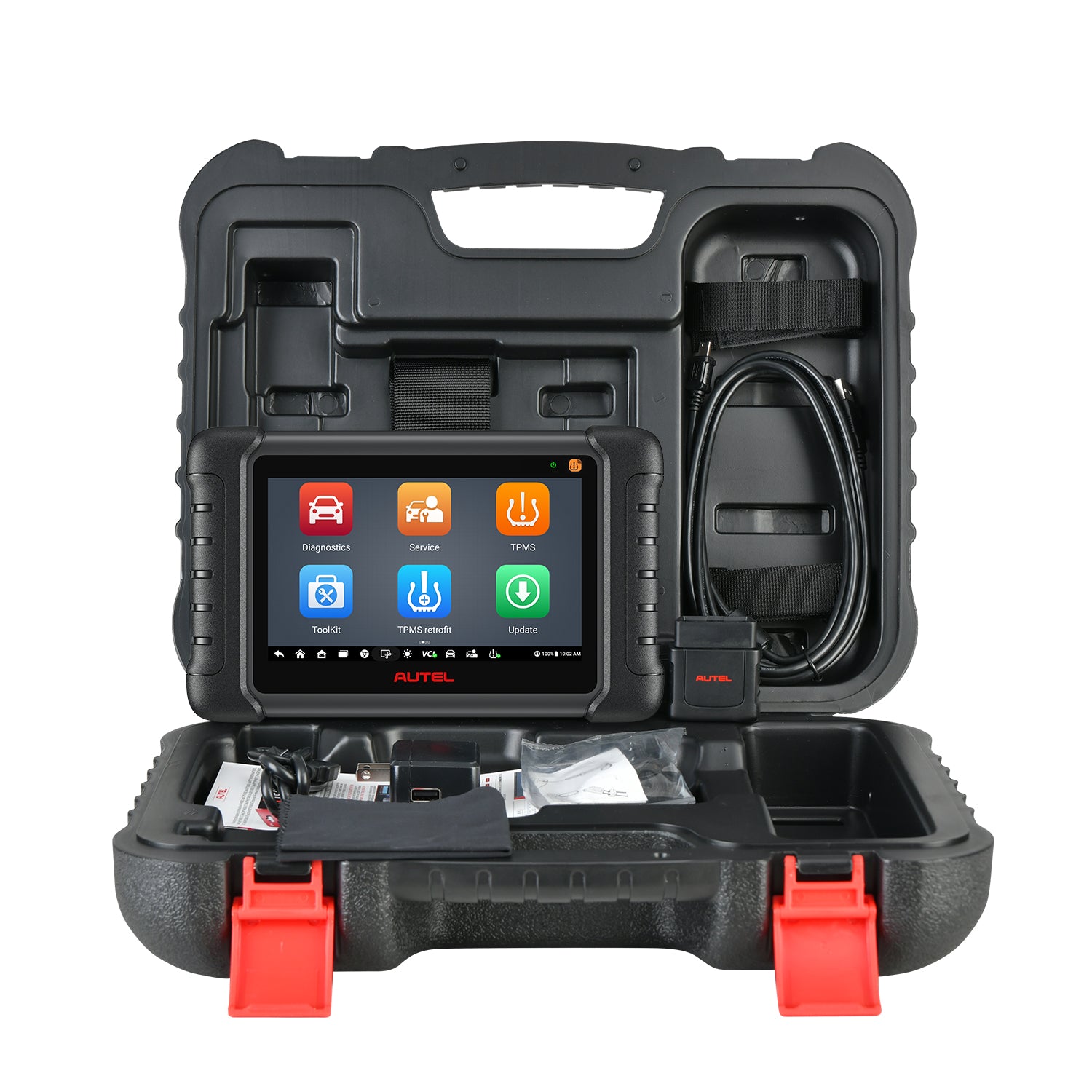

• 1x Carrying Case
