MaxiCOM MK808Z-TS

• Full TPMS Functions– MK808Z-TS (Same as MX808S-TS) is equipped with TPMS scanning module, which supports TPMS diagnose, activate all known sensors, Four TPMS relearning methods, Two Sensor Programming ways, view sensor data like sensor ID, tire pressure/ temperature, sensor location, etc.
• OE-Level Diagnostic – Autel Scan Tool MK808Z-TS works well on 80+ car makes and models worldwide (1996 and newer), able to Read/ Clear codes, View Live Data, and retrieve ECUs information for all available systems.
• 26+ Reset Services – MaxiCOM MK808Z-TS Scanner has up to 26 Reset service functions options, mainly including Oil Reset, EPB service, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc.
• Bi-Directional Control – Autel MaxiCOM MK808Z-TS can do active tests that send commands to the ECU to activate the actuators and monitor them, like ABS, window, door, solenoids, valves, wipers, etc, quickly finding out bad parts and pinpoint faulty issues.
• AutoAuth for FCA/SGW– AutoAuth unlocked with the latest software update can securely serve modern FCA / SGW vehicles for OBDII diagnostics, active test, calibrations, and more….

[keyfeatures] [videos]

Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCOM MK808Z-TS provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), and BMS (Battery Management System). In addition to OBDII diagnostics and special functions, MK808Z-TS can perform comprehensive TPMS services with ease.

• Read/clear codes for all available systems
• Display live data in text, graph & analog for easy data review
• Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
• Perform bi-directional Active Tests
• Advanced TPMS diagnostics for complete TPMS service
• Activate all known TPMS sensors
• Program AUTEL MX-Sensors to replace 99% of the TPMS on vehicles on the road today
• Comprehensive OBDII Relearn coverage
• Displays vehicle-specific Relearn instructions
• 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
• Powerful Cortex-A55 processor (1.8 GHz) processor
• 64GB on-board memory for better performance
• Android 11 operating system for fast boot-up and multitasking
• Reset Steering Angle Sensor (SAS)
• Reset service mileage and service intervals
• Reset Electronic Parking Brake
• Perform DPF regeneration
• Reset Injectors
• Support battery registration and reset
• Compatible with Videoscope
• Includes One Year Free Update and One Year Free Warranty
• Compare: Autel 808 Series and 900 Series

Comparison

	MaxiCOM MK808Z-TS	MaxiCheck MX808S
Read Codes	√	√
Erase Codes	√	√
Live Data	√	√
ECU Information	√	√
Active Test	√	√
Service Functions	√	√
Complete OBD Diagnositcs	√	√
Oil Serive Reset	√	√
Parking Brake Pad Relearn After   Replacement	√	√
Steering Angle Sensor Relearn	√	√
Battery Registration and Reset	√	√
Diesel Particulate Filter Regeneration	√	√
Tire Pressure Monitoring System	Complete	Basic
Immobilizer Function	Basic	Basic
Advanced TPMS Diagnostics for Complete   TPMS Health Check	√	—
Activate 98% of All Known TPMS Sensors	√	—
Program AUTEL MX-Sensors	√	—
Comprehensive OBD relearn coverage	√	—
On-screen Relearn Procedure	√	—
Battery Analysis	√	—
Videoscope	√	√
Processor	Quad-core 1.8GHz	Quad-core 1.8GHz
Operating System	Android 11	Android 11
Memory	4G + 64G	4G + 64G
Display	7′ LCD	7′ LCD
Battery	5000 mAh	5000 mAh
Internet Updatable	WiFi	WiFi
Multilingual Support	√	√
Historical Test Records	√	√
Save and Playback Data	√	√
Print Data via Windows PC	√	√
Vehicle communication method	Wireless (bluetooth)	Wired

Specification

Recommended Use	Indoor
Operating System	Android 11
Processor	Cortex-A55 quad-core processor (1.8GHz)
Memory	4GB RAM & 64GB On-board Memory
Display	7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity	Mini USB 2.0; USB2.0; Wi-Fi; HDMI Type A; Micro SD card slot(supports up to 64GB)
Sensors	Light sensor for brightness auto adjust
Audio Input/Output	Input: N/A, Output: Beep
Power and Battery	3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Battery Charging Input	5V/1.5A
Operating Temp	0 to 55°C(32 to 131°F)
Storage Temp	-10 to 60°C (14 to 140°F)
Dimensions (W x H x D)	270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
Net Weight	885 g (2.31 lb.)/td>
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

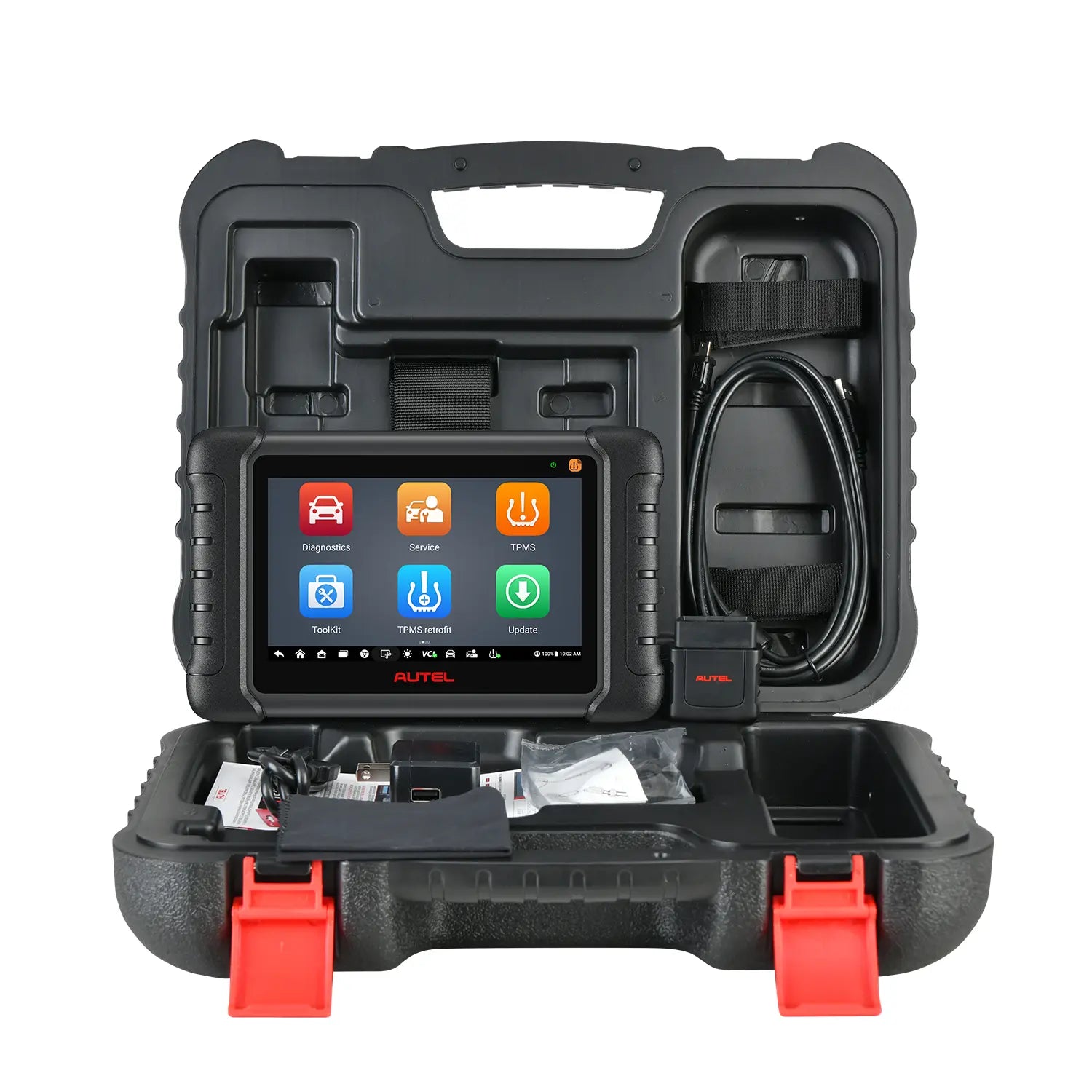

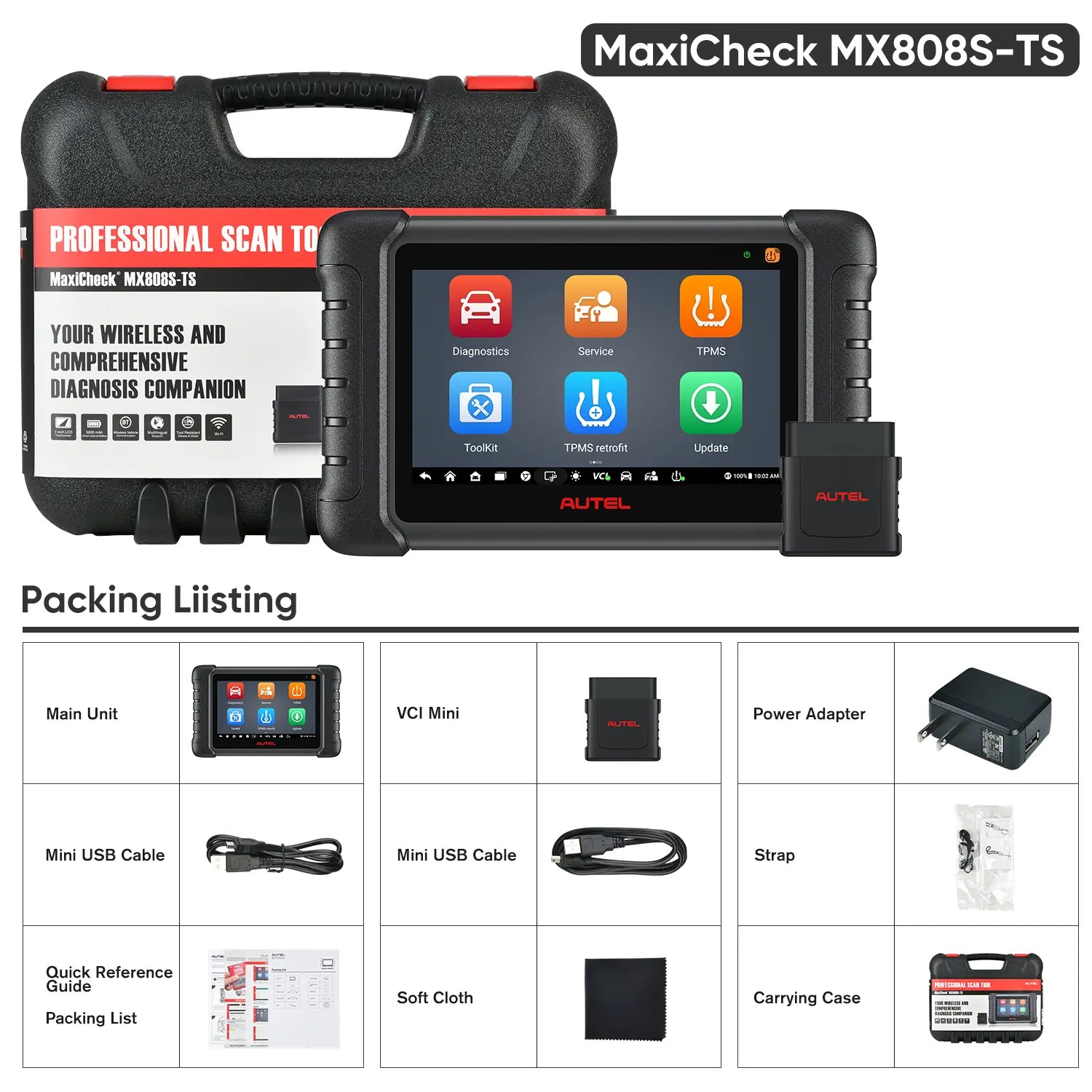

Packing List

• 1 x Main Unit
• 1 x VCI Mini
• 1 x Power Adapter
• 1 x USB Cable(for testing)
• 1 x USB Cable(for charging)
• 1 x Quick Reference Guide
• 1 x User Manual
