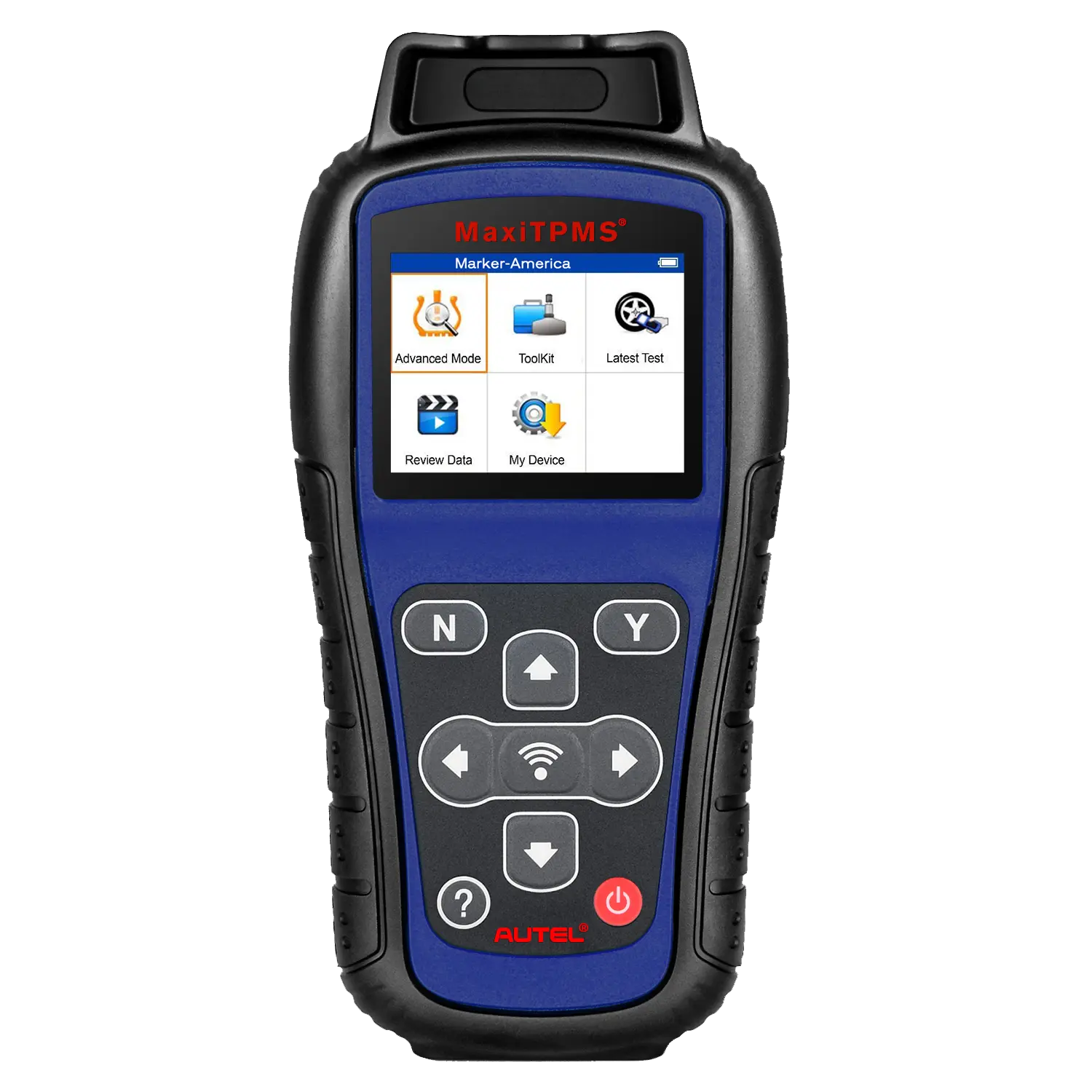

MaxiTPMS TS501 Pro

• 2025 TS501 PRO TPMS Tool: The TS501 PRO TPMS Programming Tool is a major upgrade from the older models TS501, TS408, and TS401. It offers wider vehicle coverage and comes with lifetime frequent updates. It provides all TPMS service options, including TPMS programming for Autel MX-Sensors, sensor relearning/activation, TPMS reset, TPMS health diagnostics, sensor data reading, key fob frequency testing, and tire type/pressure selection.

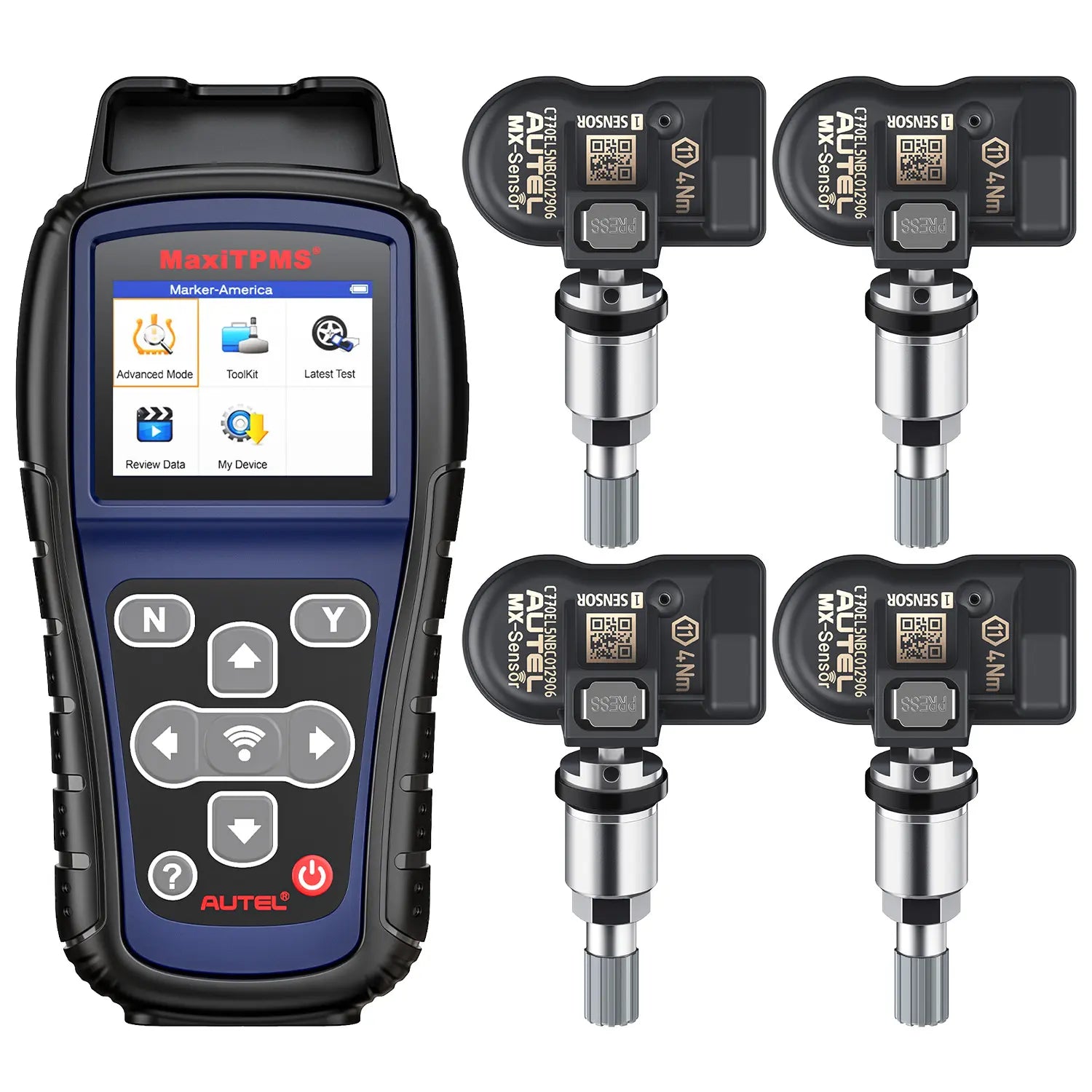

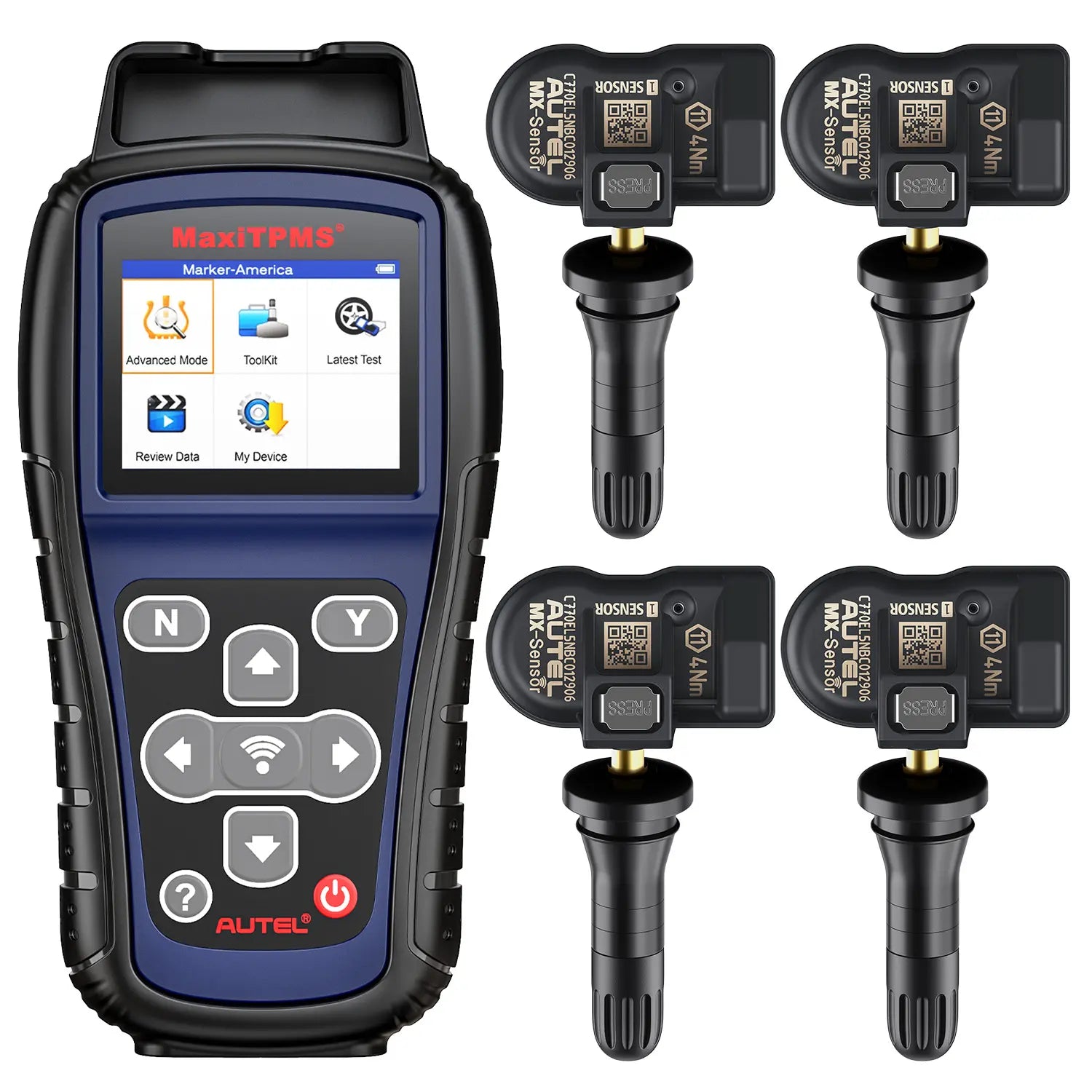

• 2 Ways of TPMS Programming: Program AUTEL MX-Sensor (315/433MHz) with professional programming options: Copy by OBD and Auto Create 1-16 Sensors.
• Relearn All Known TPMS Sensors: The Autel TPMS TS501 PRO introduces a new OBD Relearn Method, an upgrade over the MaxiTPMS TS401 and TS408. To turn off the TPMS warning light after sensor replacement, you need to relearn the sensors to the vehicle. The Autel TS501 PRO TPMS Relearn Tool offers three on-tool relearn procedures for OE sensors: Stationary Relearn, Automatic Relearn, and OBD Relearn.
• Activate All-Known Brand Sensors: The Autel TS501 Pro TPMS Reset Tool wirelessly activates most OEM TPMS sensors, allowing you to easily retrieve sensor data such as Sensor ID, Tire Pressure, Tire Temperature, Sensor Battery, Sensor Position, and Frequency. Additionally, the TS501 Pro can diagnose the TPMS system by connecting to the OBDII port to read and clear codes.
• Lifetime Free Update: Autel TS501 Pro TPMS relearn tool provide lifetime FREE software updates.

[keyfeatures]

[videos]

MaxiTPMS TS501 Pro Features

• Support Tire Type/Pressure selection
• Internet updatable via USB
• Read/Activate/Relearn All Known Sensors
• Detect & Display TPMS System Faults
• Display Vehicle-Specific Relearn Procedures; Perform OBDII Relearns
• 2 Programming Options: MX-Sensors Only
• TPMS System Status Screen
• Key Fob Signal Test
• Display Sensor ID, Battery Life (on supported sensors) and Psi
• Includes OBDII Cable
• 2.3′ Color Display 320×240
• Easy-To-Use Navigation
• 2400mAh Lithium-polymer Battery
• Includes Lifetime Free Update and One Year Free Warranty

Specifications

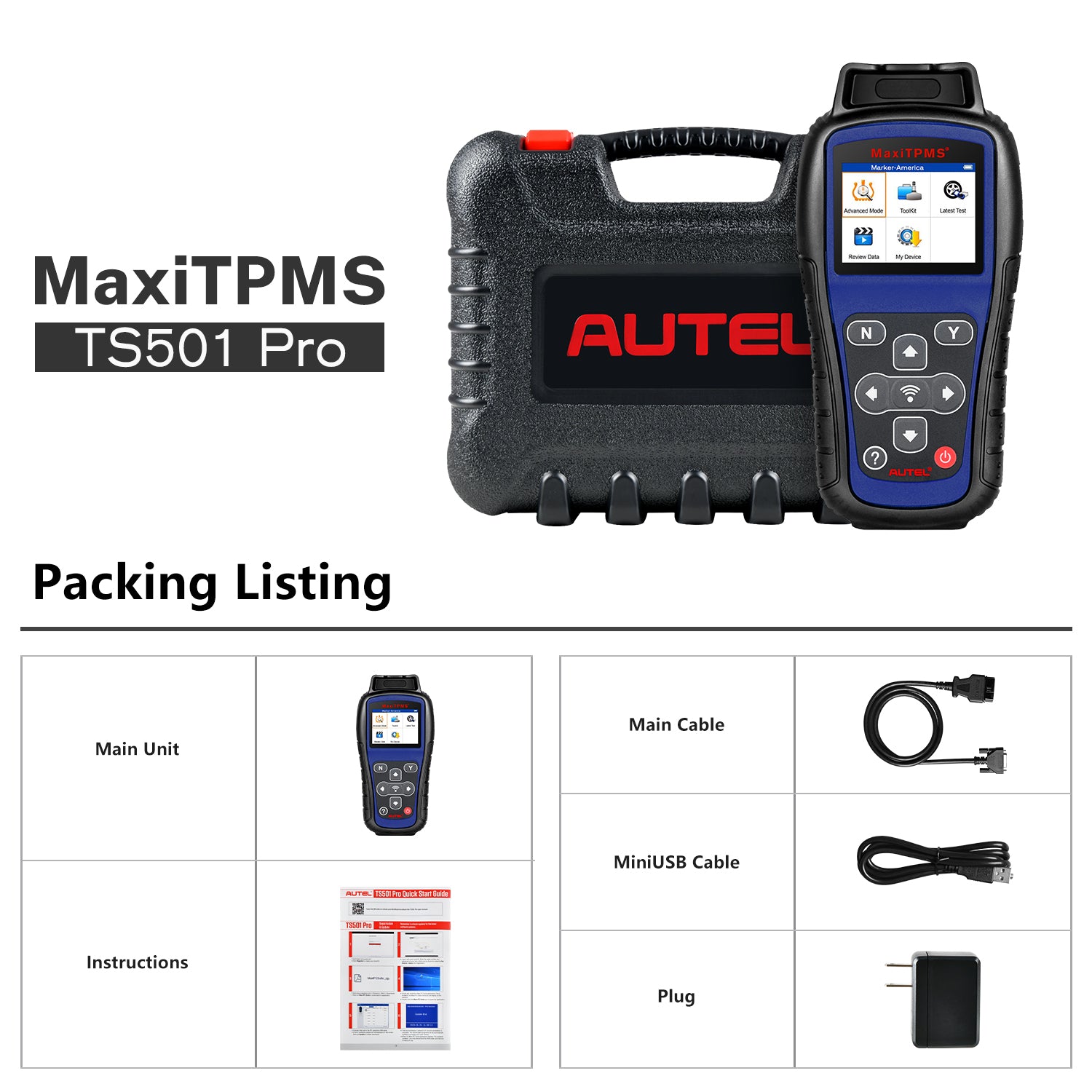

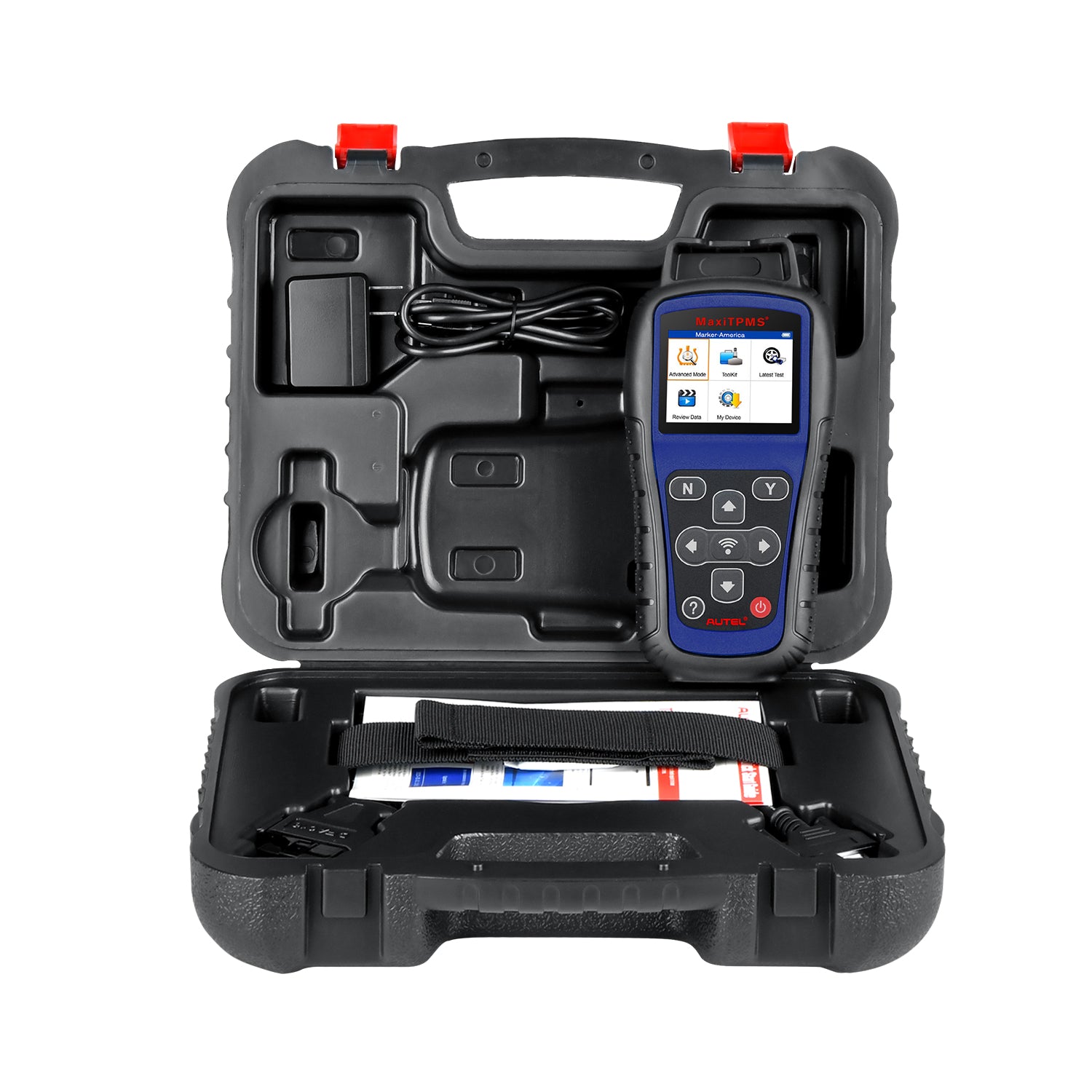

Autel TS501 Pro Packing List

• 1x TS501 Pro Main Unit
• 1x Main Cable
• 1x Mini USB Cable
• 1x Plug
• 1x Instructions
