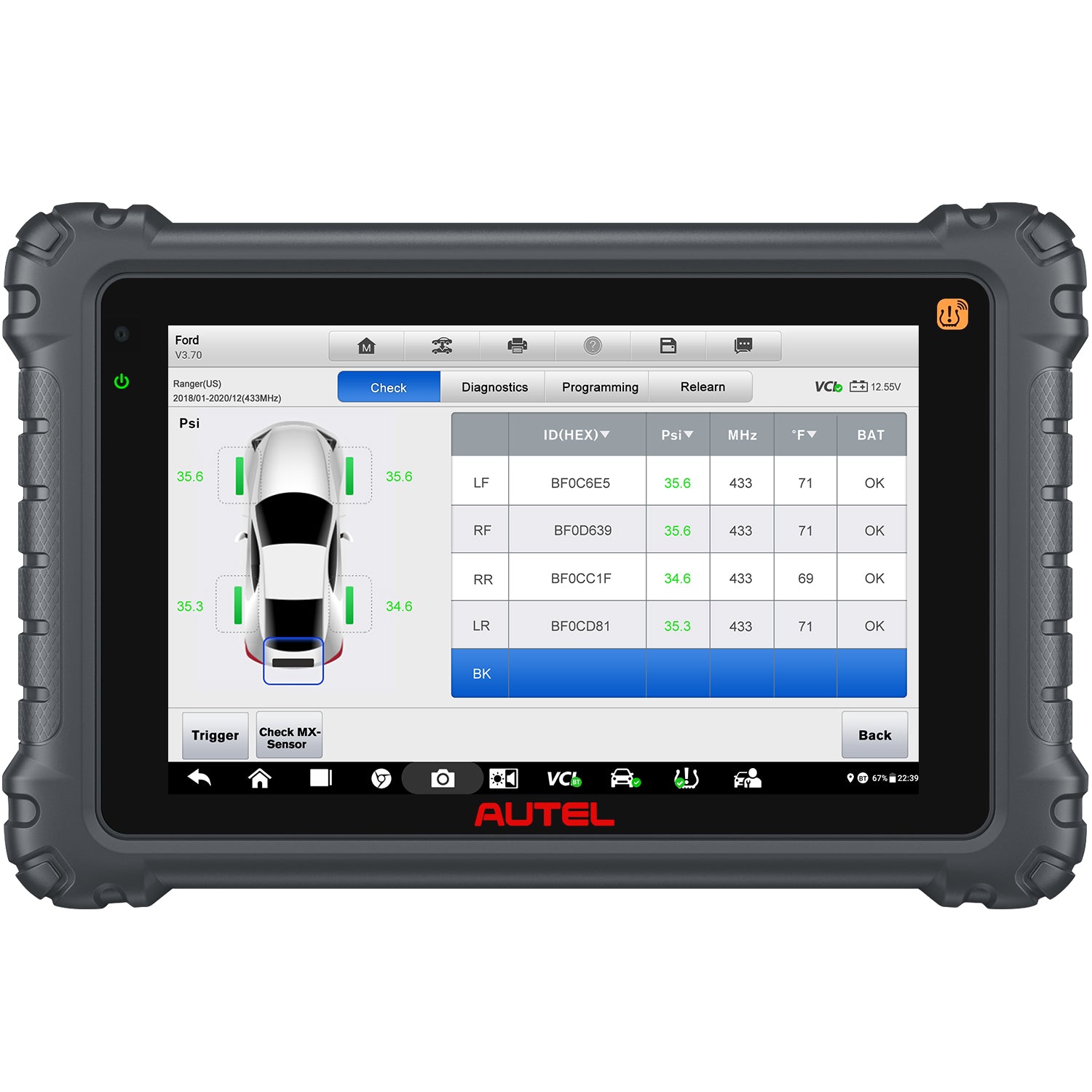

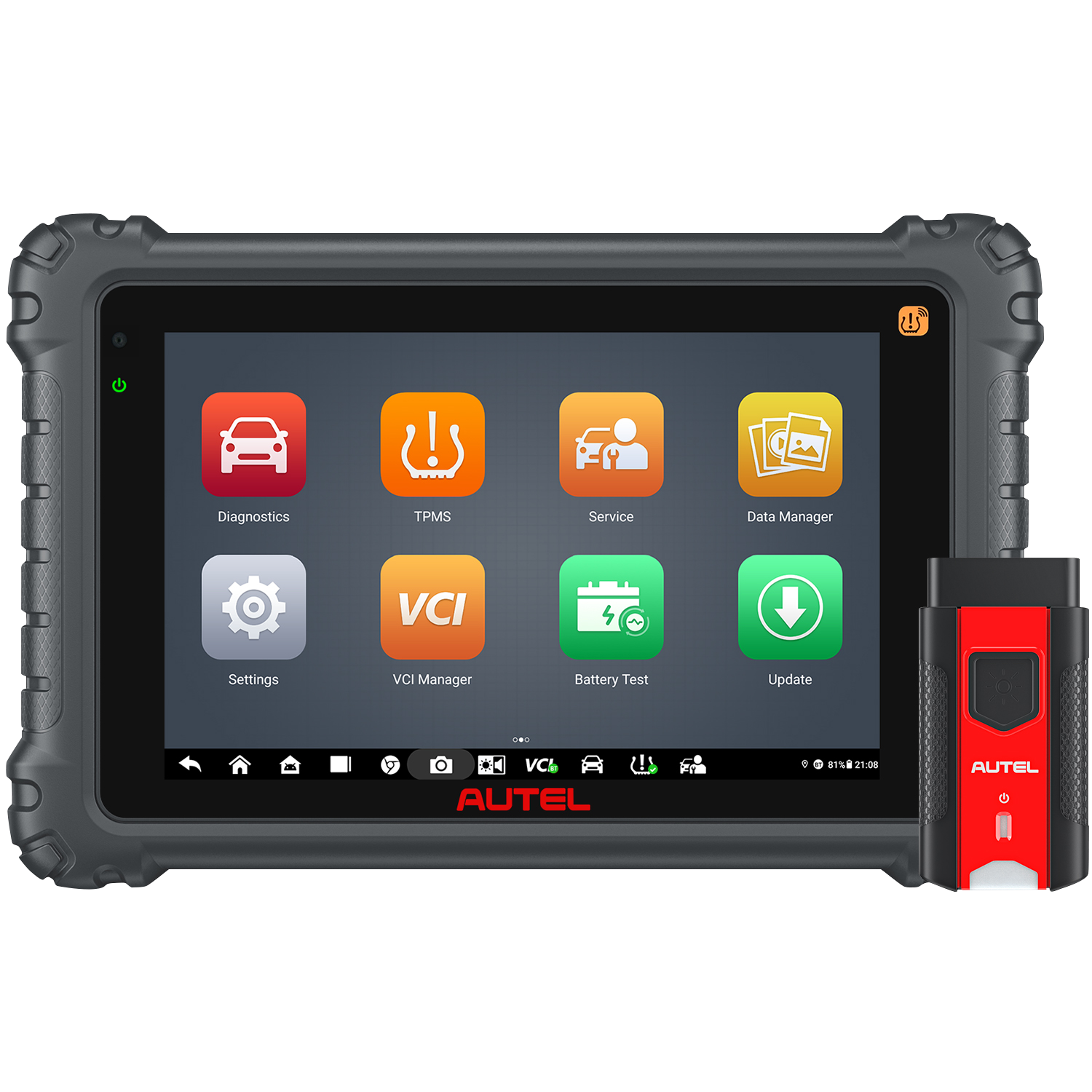

Autel MaxiCOM MK906 Pro-TS

• Complete TPMS Function: Upgrade of MS906TS, Autel MK906 PRO-TS Diagnostic Scanner 2025 integrates a TPMS antenna module for full TPMS services, including activating and relearning 99% of all known TPMS sensors, programming MX-Sensors, turning off TPMS lights, retrieving OEM sensor part numbers in seconds, and offering 3,000+ built-in relearn procedures.
• Advanced ECU Coding: The Autel MK906 PRO-TS professional diagnostic scanner establishes full data links with electronic control units via VCI for vehicle diagnostics, repairs, and coding. It supports online coding and personalization for high-end vehicles such as BMW, Porsche, and VW.
• Beginner-Friendly Guided Functions: The Autel MK906 PRO-TS TPMS Relearn Tool & Diagnostic Tool offers OE-level guidance with step-by-step screen instructions, making complex operations easier. Ideal for beginners and DIY mechanics. Compatible with VW, Audi, Skoda, Seat, Bentley, and more.
• Powerful Bi-Directional Control: Featuring bi-directional control, the Autel MaxiCOM MK906 PRO-TS can send commands to ECUs, controlling and monitoring modules such as PDM, SMF, RSM, and TCU to quickly and accurately diagnose vehicle issues.
• Unlock Hidden Features: This MK906 PRO TS scanner can activate hidden features already programmed in the vehicle’s computer, such as enabling auto start-stop systems, customizing injector lights, and adjusting auto door lock speeds. Compatible with BMW, VW, Audi, Skoda, and more.
• FCA AutoAuth Support: The Autel MK906 PRO-TS Automotive Scan Tool supports FCA AutoAuth, allowing users to clear codes, perform active tests, and access special functions for Chrysler FCA models (2018 and newer) without special adapters.

[keyfeatures]

[videos]

Designed for tire repair shops and professional technicians, the Autel MaxiCOM MK906 PRO-TS is the perfect combination of a high-end diagnostic scanner and a TPMS programming tool. As an upgrade from the MS906TS, it features enhanced hardware, including a Qualcomm 660 processor, Android 10.0 OS, improved wireless VCI (V200), dual memory (4GB RAM & 128GB ROM), a 1920×1200 high-resolution touchscreen, and a 16MP dual camera, ensuring faster operation and broader vehicle compatibility.

Hardware:

• 8-inch, 1920 x 1200 high-resolution touchscreen, powered by a Qualcomm 660 Octa-core processor with 128GB storage and Android 10.0 OS.
• Long-lasting 11,600 mAh rechargeable battery, 16 MP front and rear cameras.

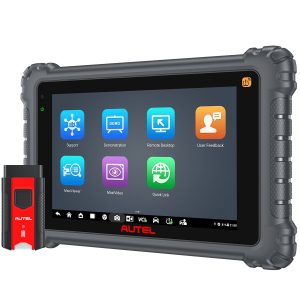

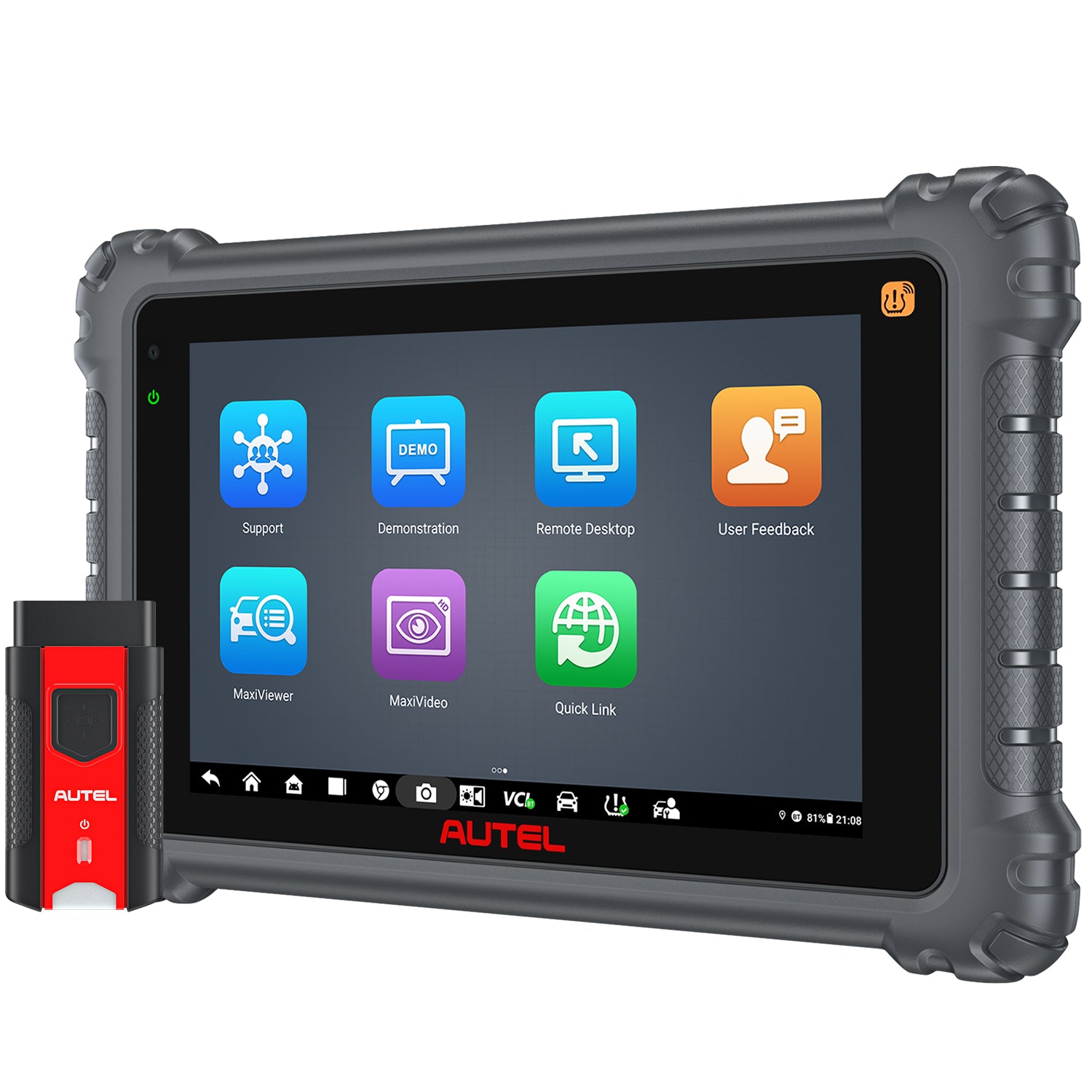

• MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols.

Software Features:

• Comprehensive diagnostics for 1996 and newer U.S., Asian, and European vehicles.
• AutoScan to scan all available systems.
• Read/erase codes, view freeze frame and live data.
• Integrated TPMS antenna module for complete TPMS services.
• Perform active tests (bi-directional controls), coding, and adaptations.
• AutoVIN/Scan VIN for rapid vehicle identification.
• Comprehensive TPMS service, including activation, relearning of all known sensors, and programming Autel 1-Sensors to replace 99% of TPMS sensors.
• Includes one year of free updates and a one-year warranty.
• Compare: Autel MS906, MS908, MS909, MS919, Ultra Series

New Software Features:

• Battery analysis capability*
• Cloud-based reports and data management

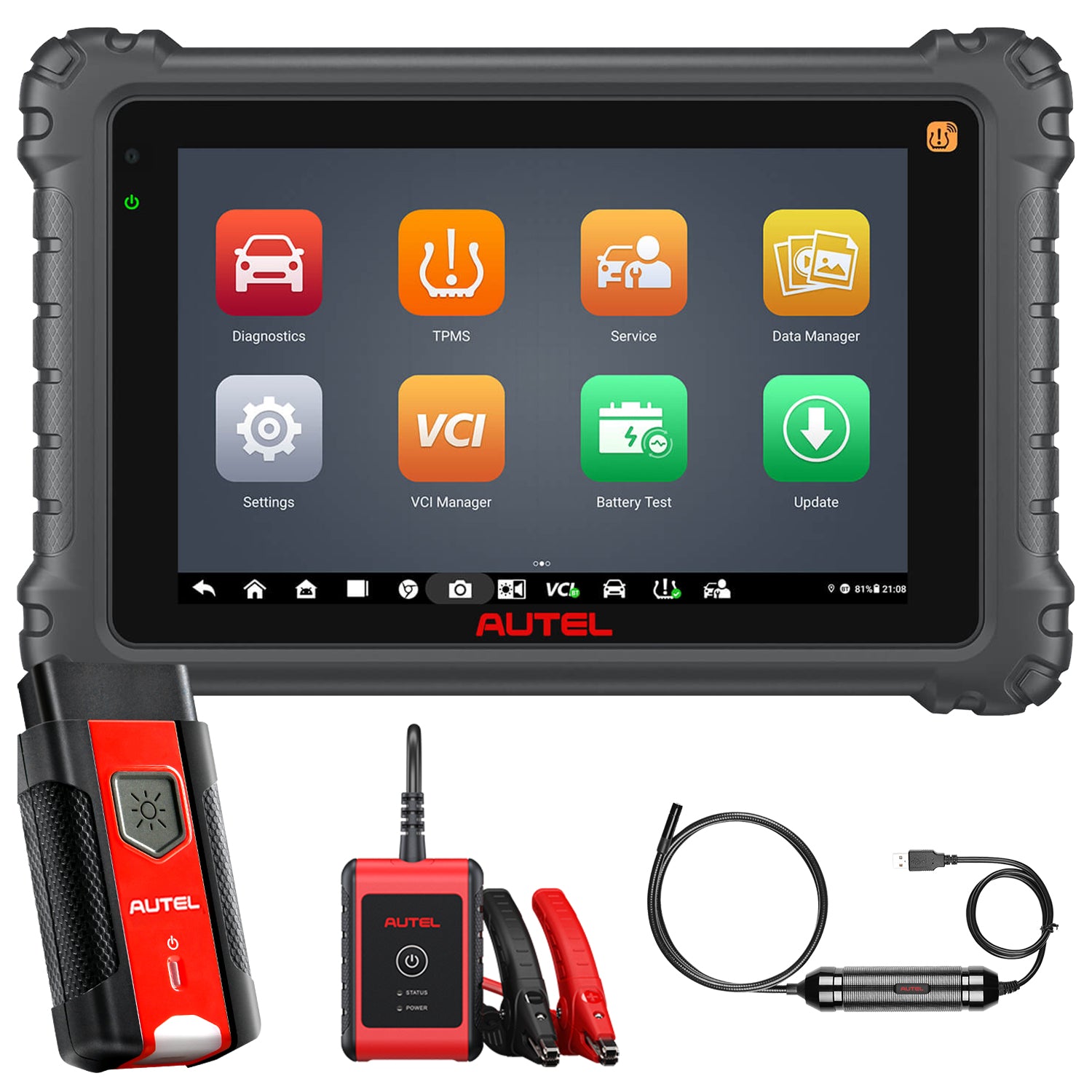

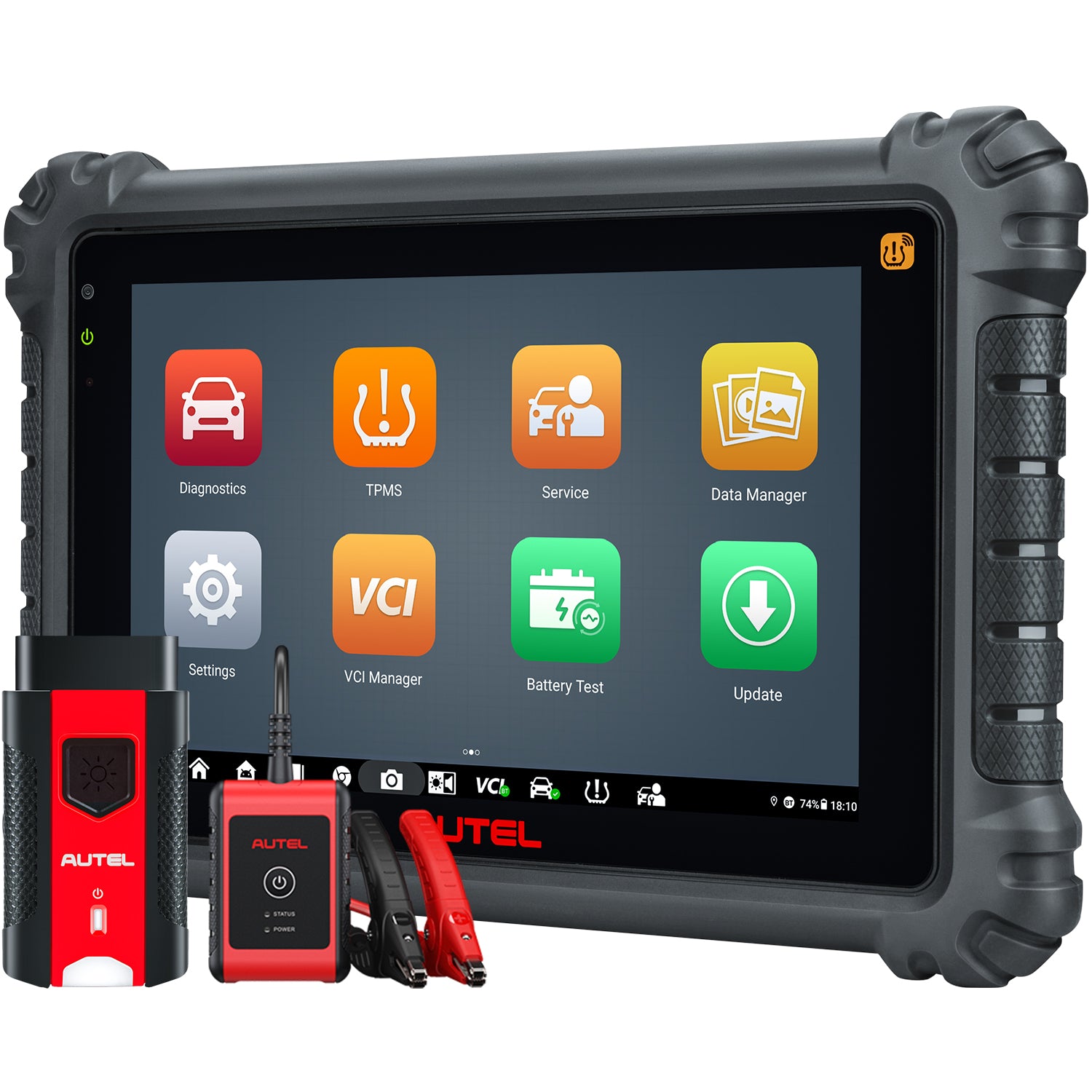

• Compatible with the MaxiBAS BT506 battery and electrical system tester (sold separately)

MK906 Pro-TS Specifications

Operating System:	Android 10.0
Processor:	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory:	4/128GB
Display:	8.0′ LED capacitive touch screen with 1920×1200 resolution
Connectivity:	• Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB)
Camera (rear):	Front: 16 Megapixel Rear: 16 Megapixel
Sensors;	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output:	• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery:	11 600 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage:	12 V (9-35 V)
Power Consumption:	5 W
Operating Temp.:	-10 to 55°C (14 to 131°F)
Storage Temp.:	-20 to 70°C (-4 to 158°F)
Dimensions (W x H x D):	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight	NW: 1.05 kg (2.3lb.)

Packing List:

• 1x MaxiCOM MK906S Pro2-TS main unit
• 1x MaxiVCI V200
• 1x AC/DC Adapter (12V)
• 1x Type C USB Cable
• 1x Cigarette Lighter Adapter
• 2x Spare Fuse(6*30mm)
• 1x USB to Ethernet Adapter
• 1x Soft Cloth
• 1x Packing List
• 1x Carrying Case
• 1x Quick Reference Guide
